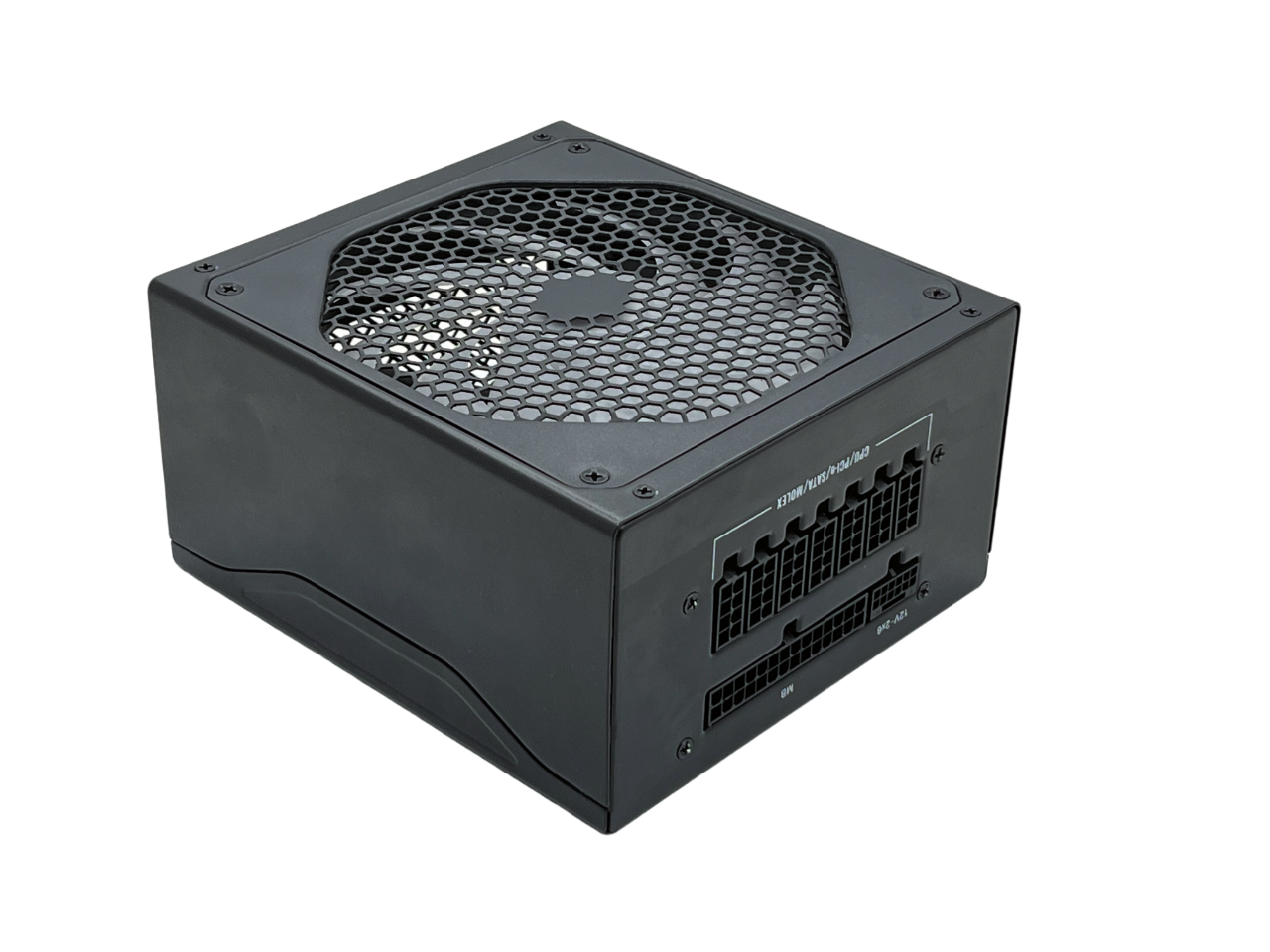

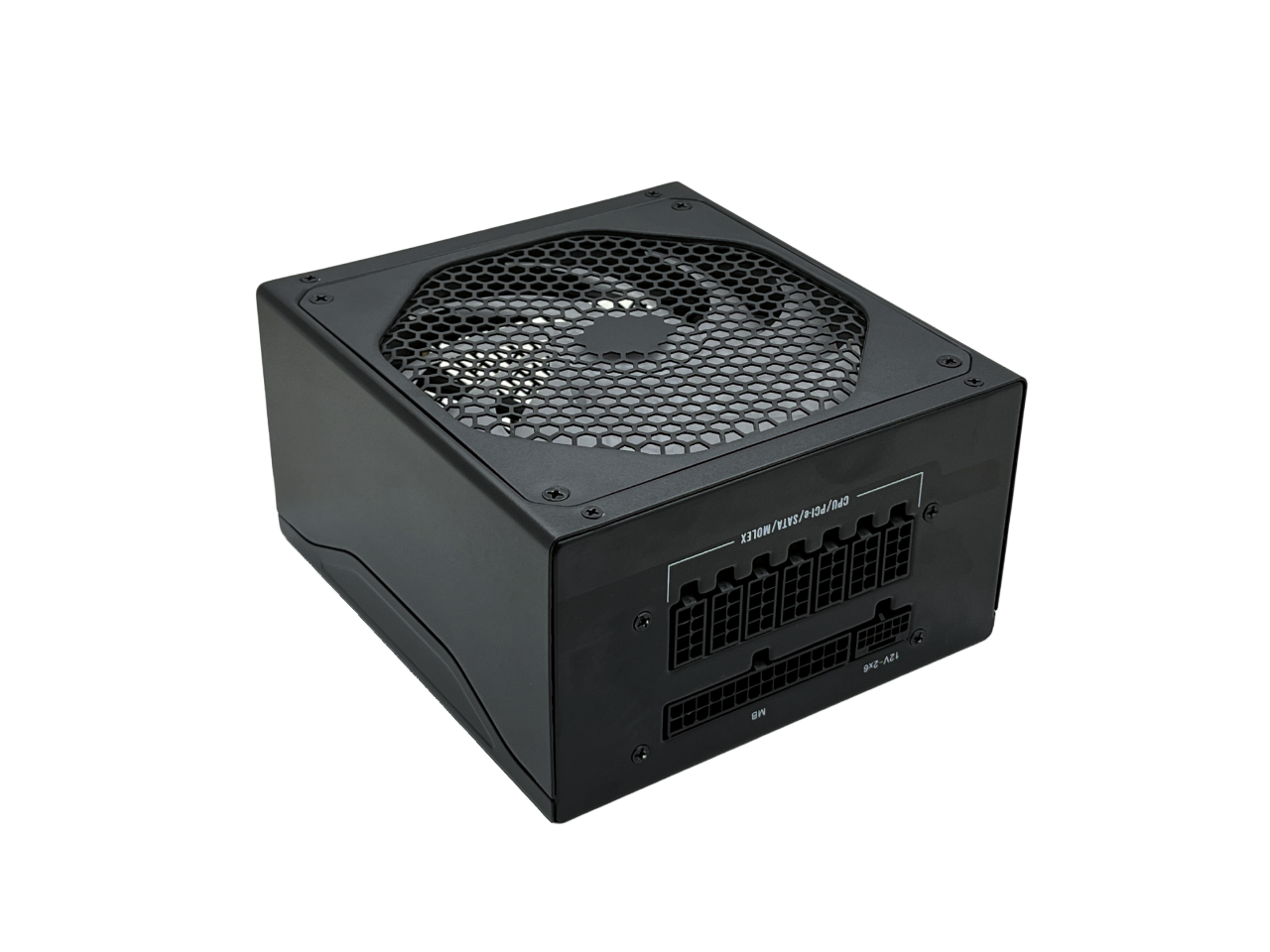

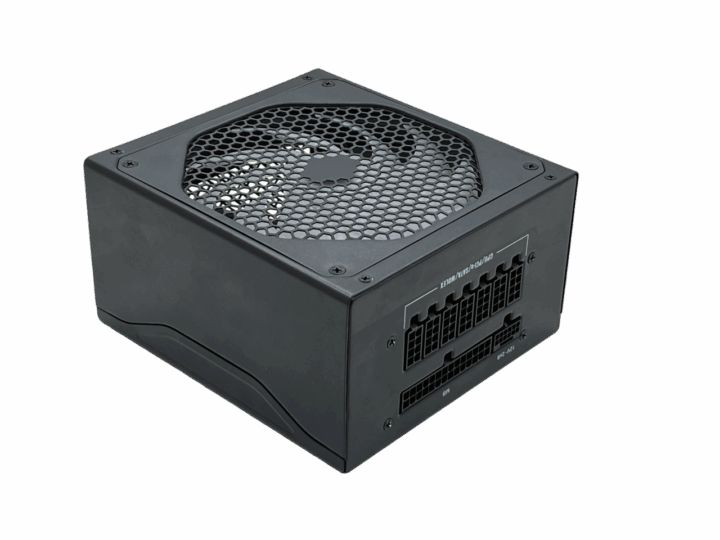

X-POINT 850w

Power & Efficiency

• Continuous Power Output: 850W

• Efficiency: 80 PLUS Gold Certified

• Typical Efficiency: Up to 90% at 50% load

Electrical Standards & Compatibility

• Form Factor: ATX 12V v2.4 / EPS 2.92

• Input Voltage: 100V – 240V (Active PFC)

• Input Current: 12A Max

• Frequency Range: 50Hz – 60Hz

Cooling System

• Fan: 135mm Silent FDB (Fluid Dynamic Bearing)
  Quiet operation with long lifespan.

Protection Features

• Safety Protections:
  OVP / UVP / OPP / SCP / OTP / OCP
  (Over Voltage / Under Voltage / Over Power / Short Circuit / Over Temperature / Over Current)

Performance

• Power Good Signal: 100 – 500ms

• Hold-up Time: >17ms at full load

• MTBF (Mean Time Between Failures): >100,000 hours

Connectors

• 1x 24-Pin ATX

• 2x 8-Pin (4+4) CPU

• 2x PCIe (6+2) + 1x PCIe (6+2)

• 6x SATA

• 2x Molex (Peripheral)

Certifications & Compliance

• RoHS Compliant

• CE / FCC

• 80 PLUS Gold Certified (internally tested)

Designed For

• High-performance gaming PCs

• Overclocked CPUs and multi-GPU setups

• GPU class: RTX 4070 Ti / RX 7900 XT and below

• Quiet and thermally efficient power-demanding builds

Included in the Box

• 1x X-POINT 850W PSU

• 1x Heavy-duty Power Cable

• Black Mounting Screws
