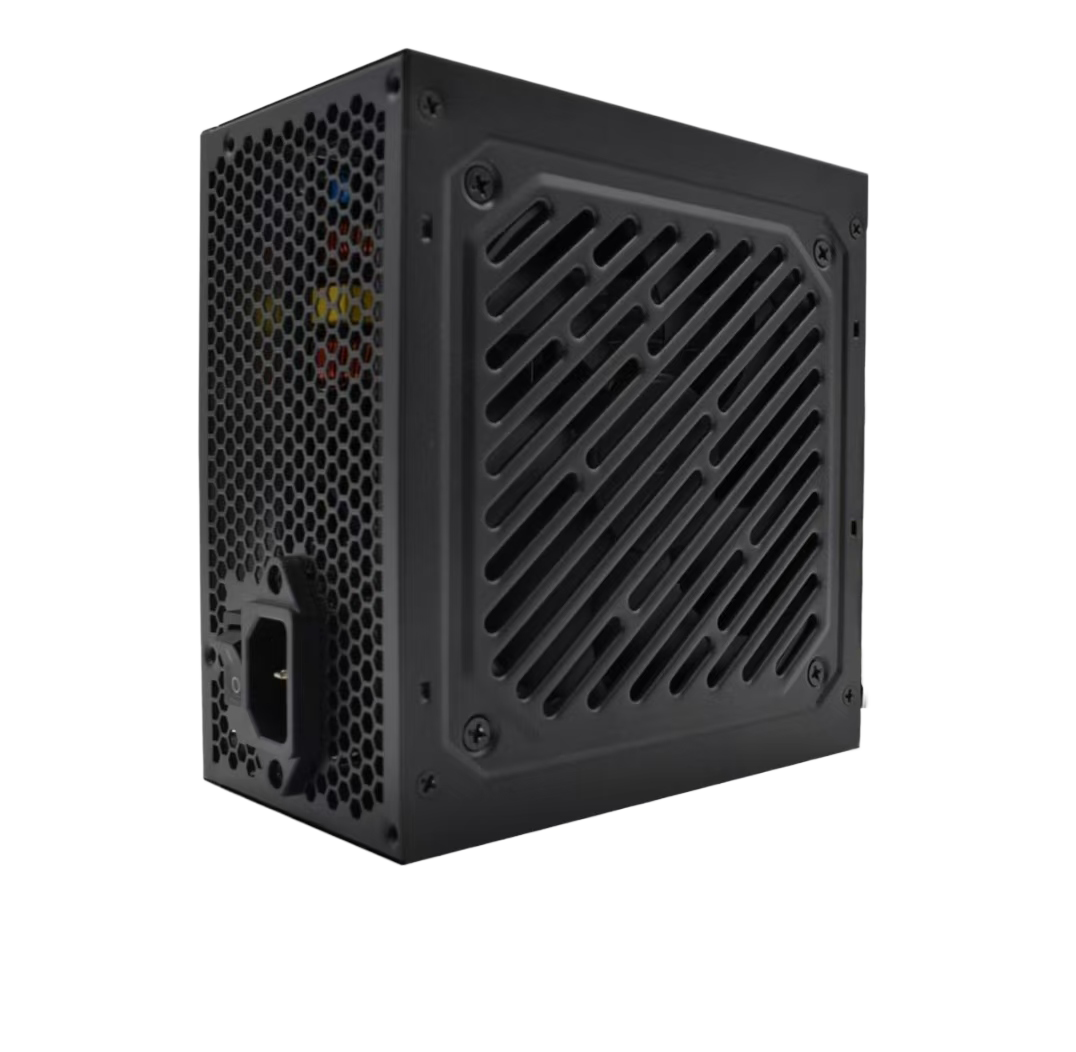

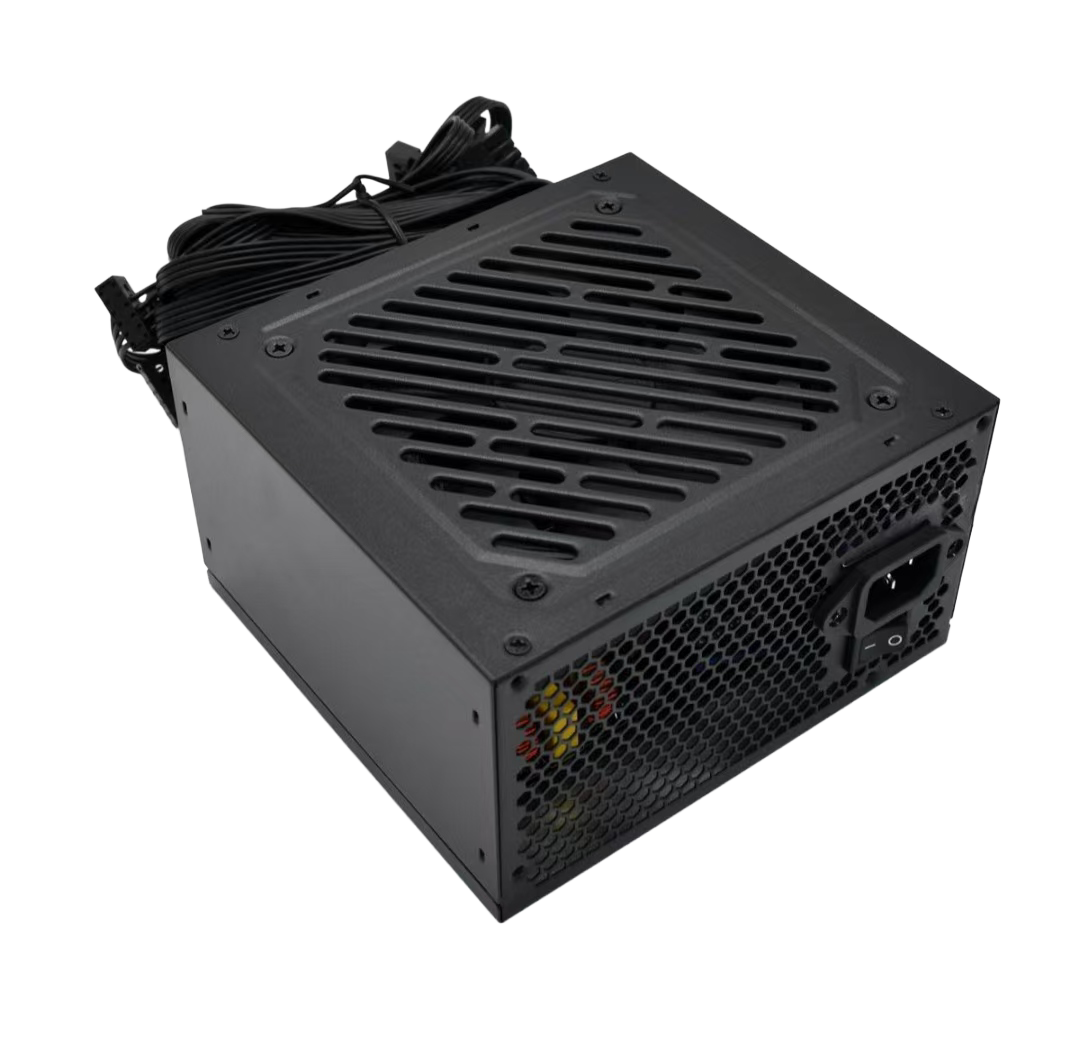

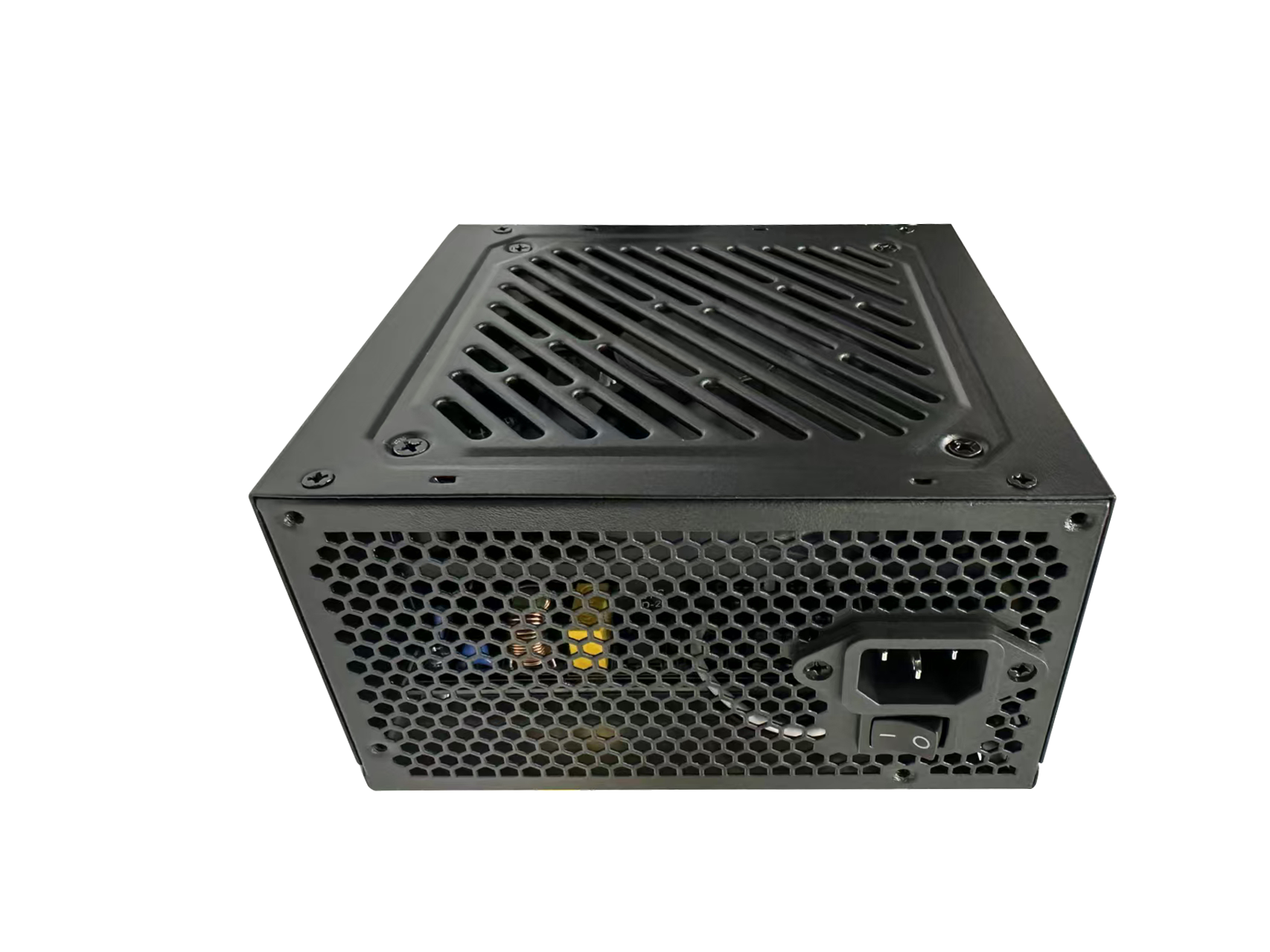

X-POINT 650w

Power & Efficiency

• Continuous Power Output: 650W

• Efficiency: 80 PLUS Bronze Certified

• Typical Efficiency: Up to 85% at 50% load

Electrical Standards & Compatibility

• Form Factor: ATX 12V v2.4

• Input Voltage: 100V – 240V (Active PFC)

• Input Current: 10A Max

• Frequency Range: 50Hz – 60Hz

Cooling System

• Fan: 120mm Silent Hydraulic Bearing Fan
  Low noise for quieter setups.

Protection Features

• Safety Protections:
  OVP / UVP / OPP / SCP / OTP
  (Over Voltage / Under Voltage / Over Power / Short Circuit / Over Temperature)

Performance

• Power Good Signal: 100 – 500ms

• Hold-up Time: >16ms at full load

• MTBF (Mean Time Between Failures): >100,000 hours

Connectors

• 1x 24-Pin ATX

• 2x 8-Pin / 8-Pin EPS (4+4)

• 2x PCIe (6+2) + 2x PCIe (6+2)

• 6x SATA

• 3x Molex (Peripheral)

Certifications & Compliance

• RoHS Compliant

• CE / FCC

• 80 PLUS Bronze Certified (internally tested)

Designed For

• Mid-to-high performance gaming PCs

• GPU setups up to RTX 3060 Ti / RX 6700 XT and below

• Silent cooling for minimal acoustic footprint

Included in the Box

• 1x X-POINT 650W PSU

• 1x Power Cable

• Mounting Screws
